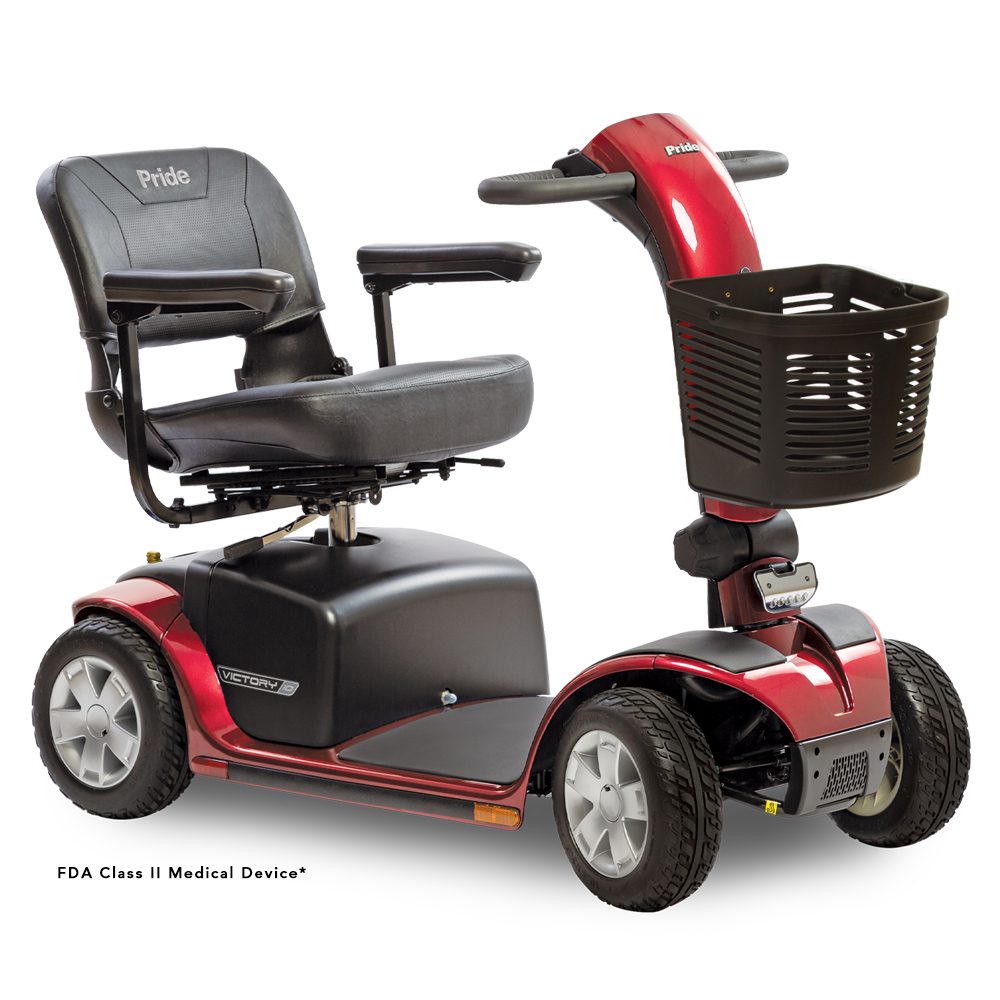

Victory 10 4 Wheel
$2,499.00
Overview
- Pride’s exclusive EZ Turn technology allows for 3-wheel turning ability while maintaining 4-wheel stability
- Exclusive one-hand feather touch disassembly provides the ultimate quick transport system
- Delta tiller with wraparound handles
- Easy-to-read Ambient Voltmeter
- Exclusive stylish, lightweight, non-scuffing, black, low-profile tires
- Long-lasting, high-intensity LED headlight offers optimal pathway illumination
- Lightweight pinchless hinge seat eight position rotation, sliders and viscoelastic foam inserts for increased comfort
- Easy-grip tiller adjustment knob
- Easy access tiller-mounted charger port
- Auto-connecting front-to-rear harness
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
Testing Standards
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride’s Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- Lifetime limited warranty on frame
- 2-year limited warranty on electronics
- 2-year limited warranty on drivetrain
Specifications
| Model | Victory 10 |
|---|---|
| Model Number | 3W: SC610, 4W: SC710 |
| Weight Capacity | 400 lbs. |
| Maximum Speed* | Up to 5.3 mph |
| Ground Clearance | 3W: 2.2” at motor, 1.26” at anti-tip, 3.4” at side deck; 4W: 2” at motor, 1.5” at anti-tip, 3.1” at side deck |
| Turning Radius** | 3W: 42”, 4W: 45.5” |
| Overall Length** | 3W: 45.25”, 4W: 47” |
| Overall Width | 22.25” |
| Seat-to-Ground Height | 23.5”-25” |
| Seat-to-Deck Height | 17.5”-19” |
| Front Tires | 3.5” x 10” solid |
| Rear Tires | 3.5” x 10” solid |
| Suspension Type | N/A |
| Range Per Charge* | Up to 15.5 miles |
| Total Weight with Batteries** | 3W: 181 lbs. (U1), 197 lbs. (40AH); 4W: 185 lbs. (U1), 201 lbs. (40AH) |
| Heaviest Piece When Disassembled** | 3W: 54 lbs. (front section); 4W: 63 lbs. (front section) |
| Standard Seating | 18”W x 17”D foldable, black vinyl |
| Drive System | Rear-wheel drive, sealed transaxle with 24-volt DC motor |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | (2) 12-volt, U1 standard, (2) 40 AH optional |
| Battery Charger | 3.5-amp, off-board (U1), 5-amp, off-board (40 AH) |
| Warranty | Frame: Lifetime limited Drivetrain: 2-year limited Electronics: 2-year limited Battery: 6-month limited |
Resources
Description
Victory 10 4 Wheel
Model: Victory 10 4 Wheel
Additional information
| Weight | 201 lbs |
|---|---|
| Dimensions | 47 × 22.25 × 25 in |
