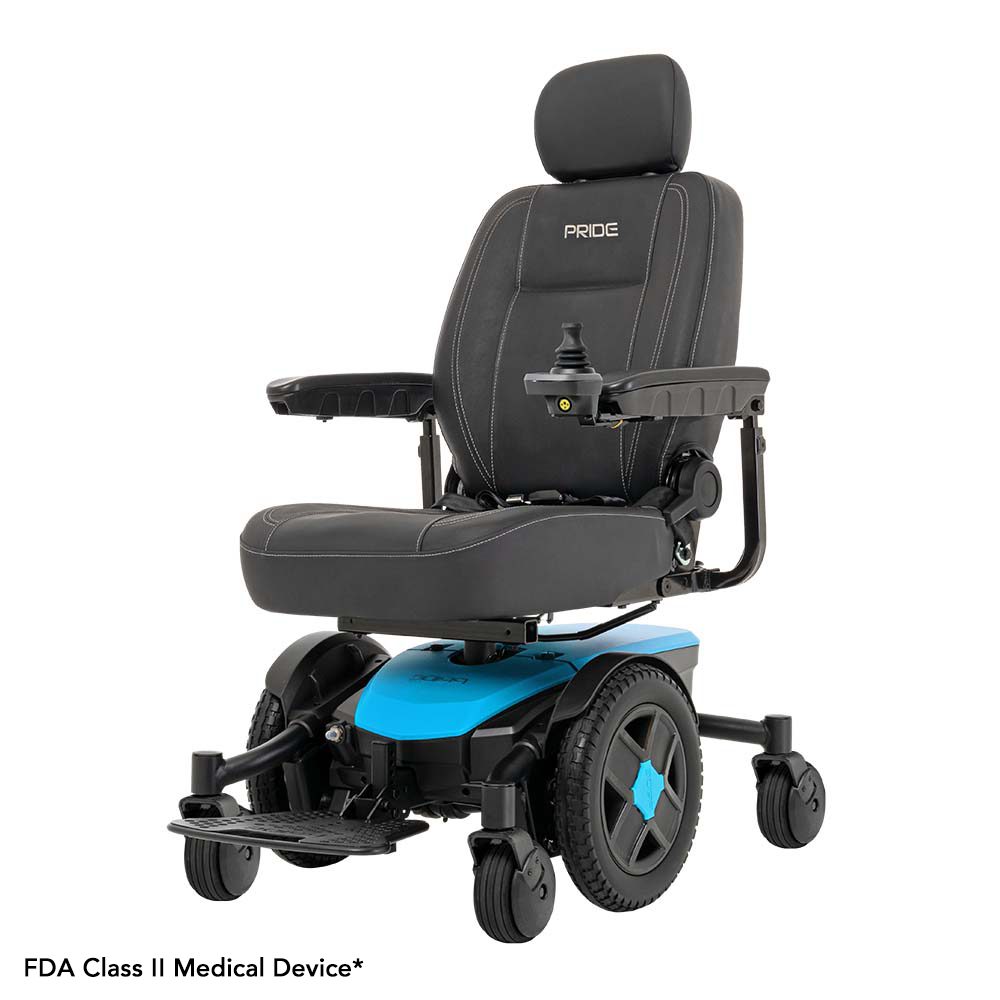

Black power wheelchair with blue base
Black electric wheelchair with joystick and blue base

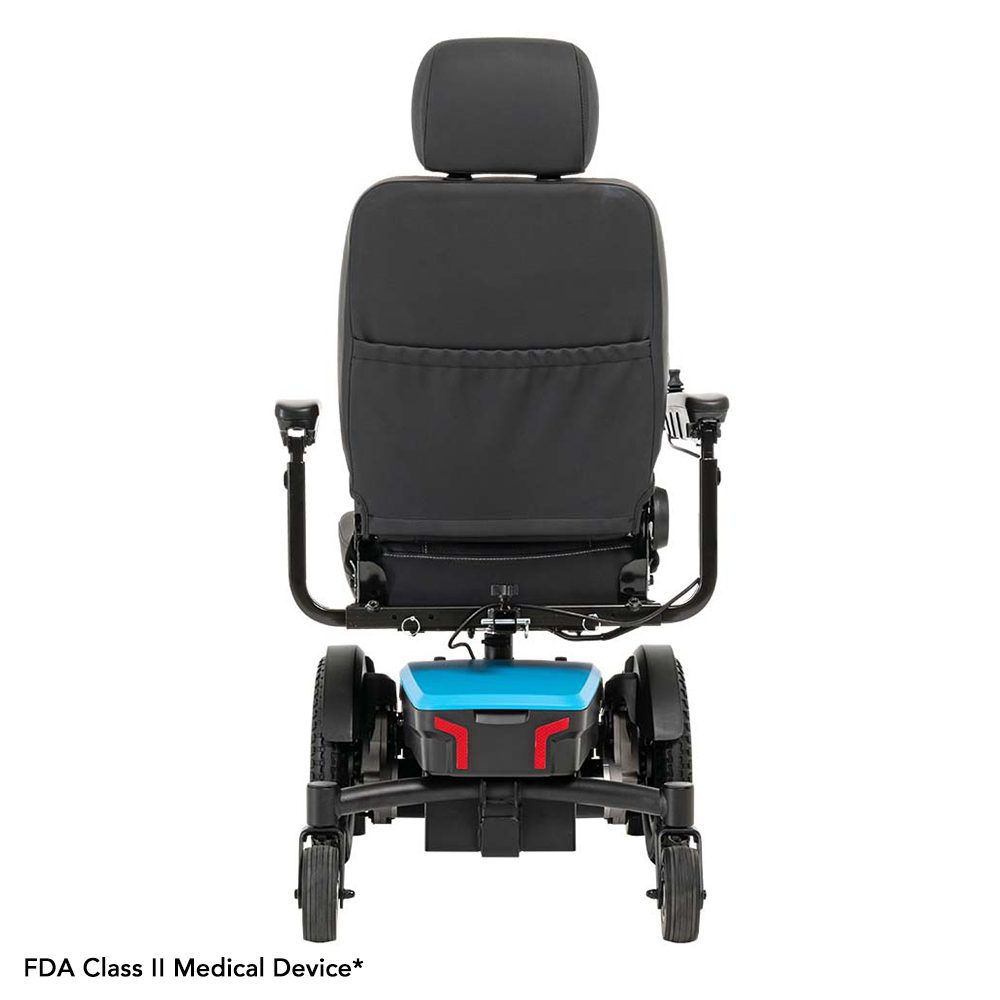

Rear view of electric powered wheelchair

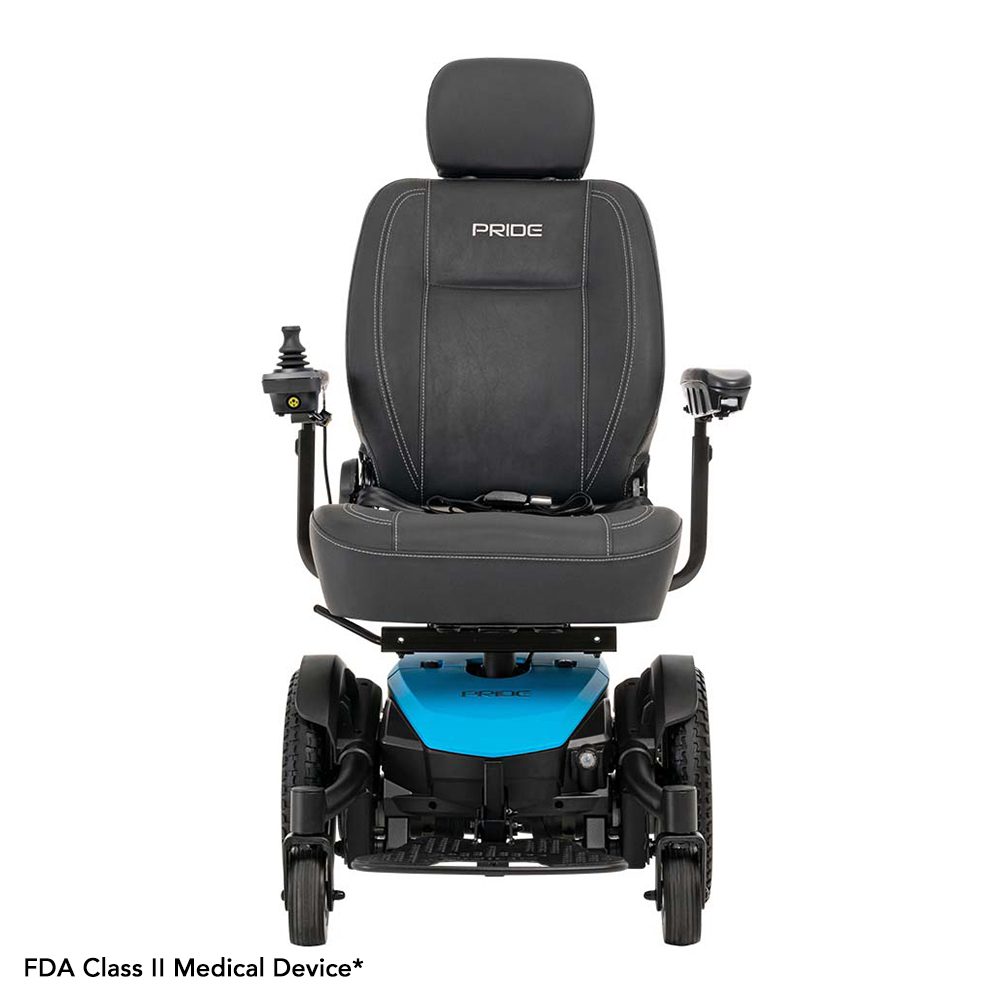

Front view electric wheelchair with joystick

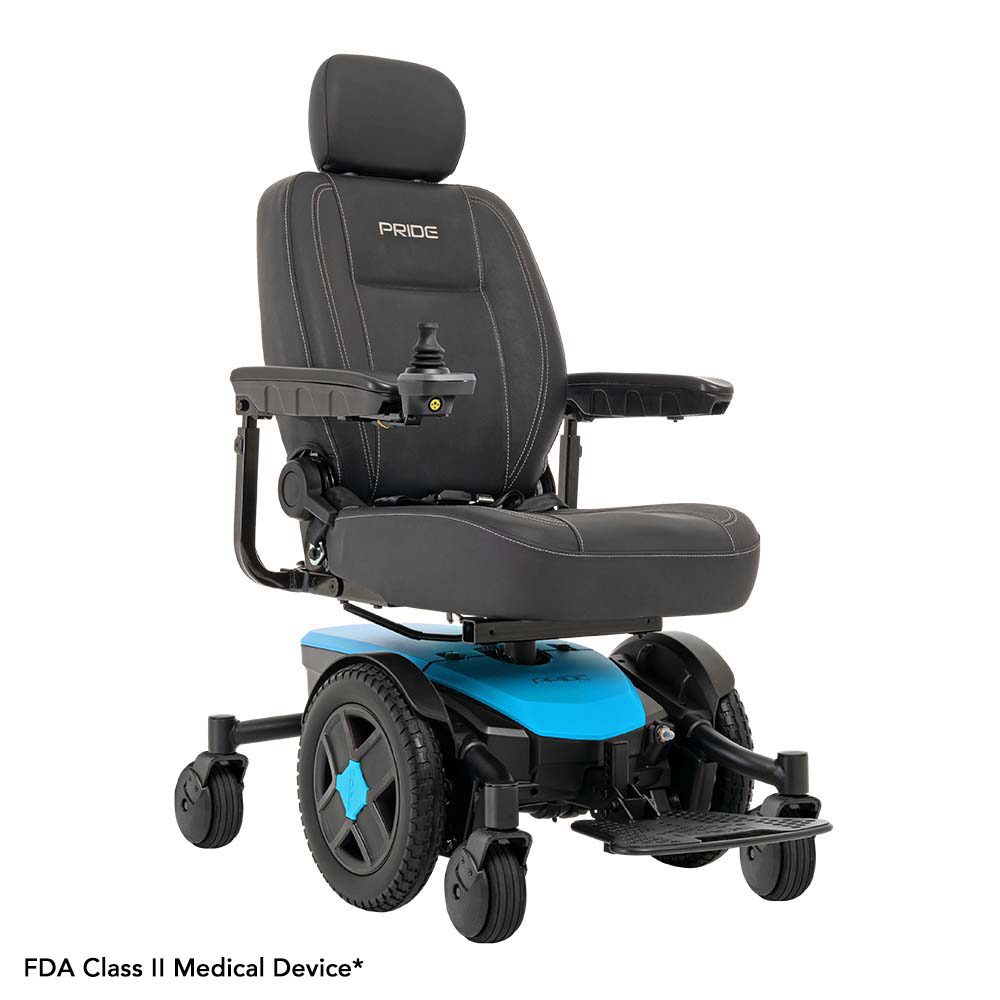

Black motorized electric wheelchair with joystick

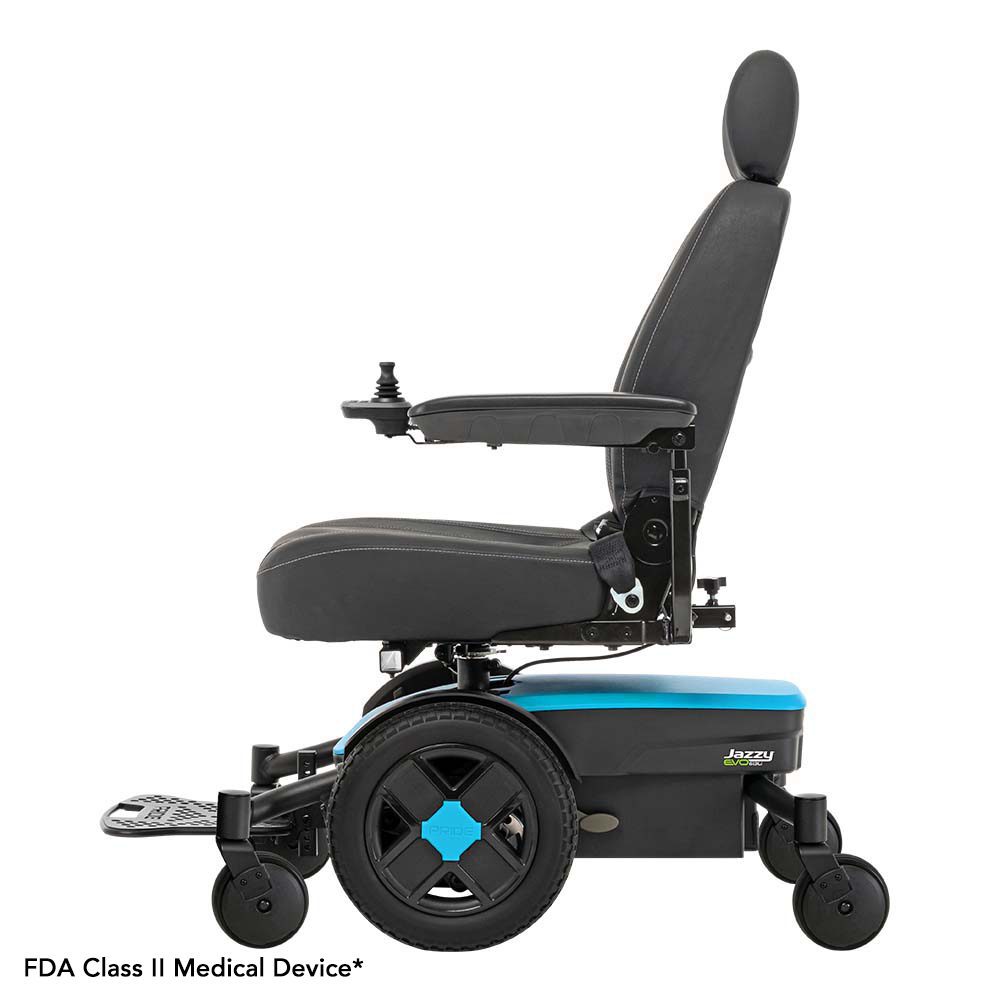

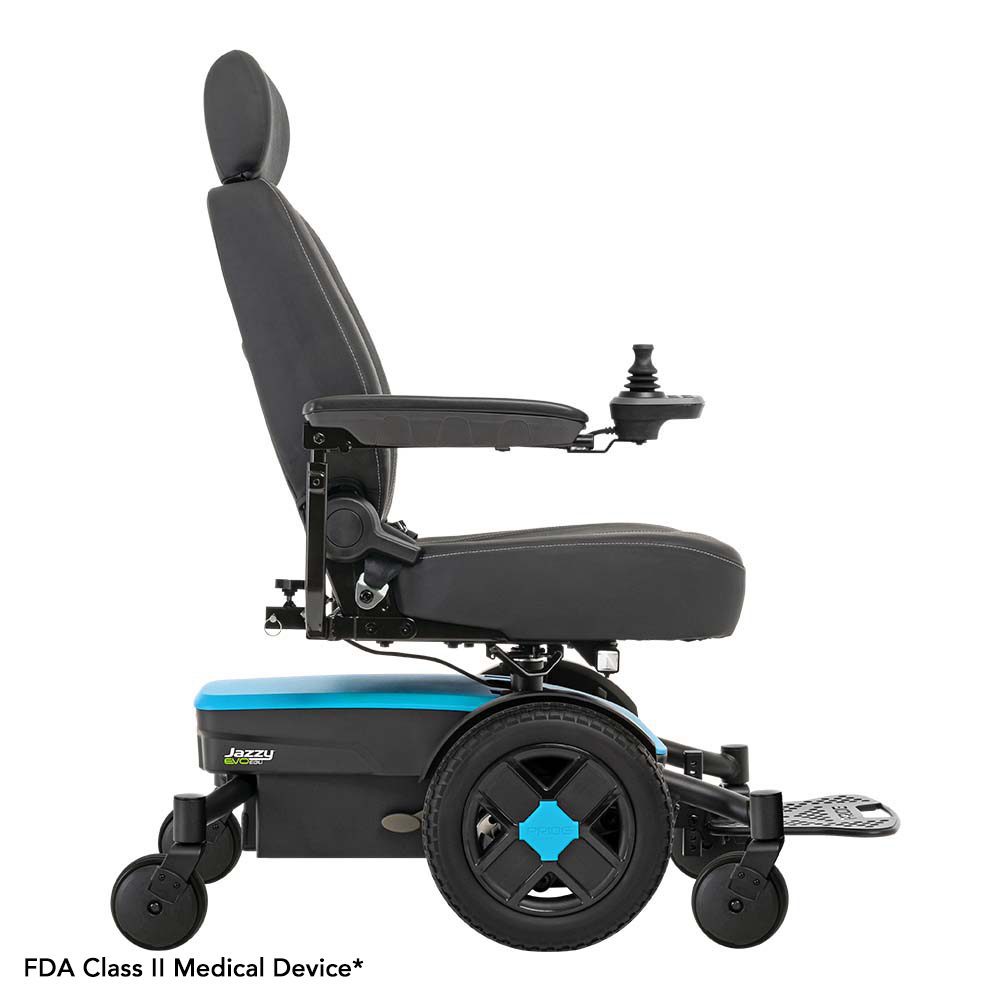

Blue-accent electric wheelchair side view

Jazzy Evo

$3,699.00

Quickship Products
Funding Package
Color
Seat
legrests
Military Patches
Category: Brand:

Description

Jazzy Evo

Model: Jazzy Evo

Overview

The all new Medicare-reimbursable Jazzy® EVO 613 is here! The Jazzy® EVO 613 provides the freedom to navigate small spaces and tight corners indoors with a narrow base width of only 22”.

  • 300 lb. weight capacity
  • Narrow base width of only 22″
  • Maximum speed up to 5.1 mph
  • 13″ solid drive tires
  • Mid-wheel 6® Technology offers tight turning radius around doorways and corners
  • Pride’s patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces

* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*

Specifications

Model Jazzy Evo 613
Weight Capacity 300 lbs.
Maximum Speed* Up to 5.1 mph
Ground Clearance 3” at motor bracket
Turning Radius** 22”
Overall Length** 41” with footrest (35” without)
Overall Width 22”
Seat-to-Floor Range 19.75” – 21.25”
Front Casters 5”
Drive Wheels 13” solid
Rear Casters 5”
Suspension Type Active-Trac® (ATX)
Range Per Charge* EVO 613: Up to 14 miles at 300 lbs., Up to 17.1 miles at 200 lbs.
Total Weight with Batteries** EVO 613: 189 lbs.
EVO 613 Li: 160.5 lbs.
Heaviest Piece When Disassembled** 94 lbs. (base)
Standard Electronics 40A, PG GC3
Battery Requirements EVO 613: (2) 12 volt, U-1
EVO 613 Li: (1) Lithium iron phosphate
Battery Charger 3.5 amp, off-board
Warranty Frame: 5-year limited
Drivetrain: 13-month limited
Electronics: 13-month limited
SLA Battery: 13-month limited
Lithium Battery: 3-year limited

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

*Speed & range vary with user weight, terrain type, battery charge, battery condition, and tire pressure.

**Due to manufacturing tolerances and continual product improvement, this specification is subject to a variance of + or – 3%.

Testing Standards

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride’s Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)

Resources

Brochures

Owner’s Manuals

Warranty Inserts

Additional information

Weight 300 lbs
Dimensions 41 × 22 × 22 in
